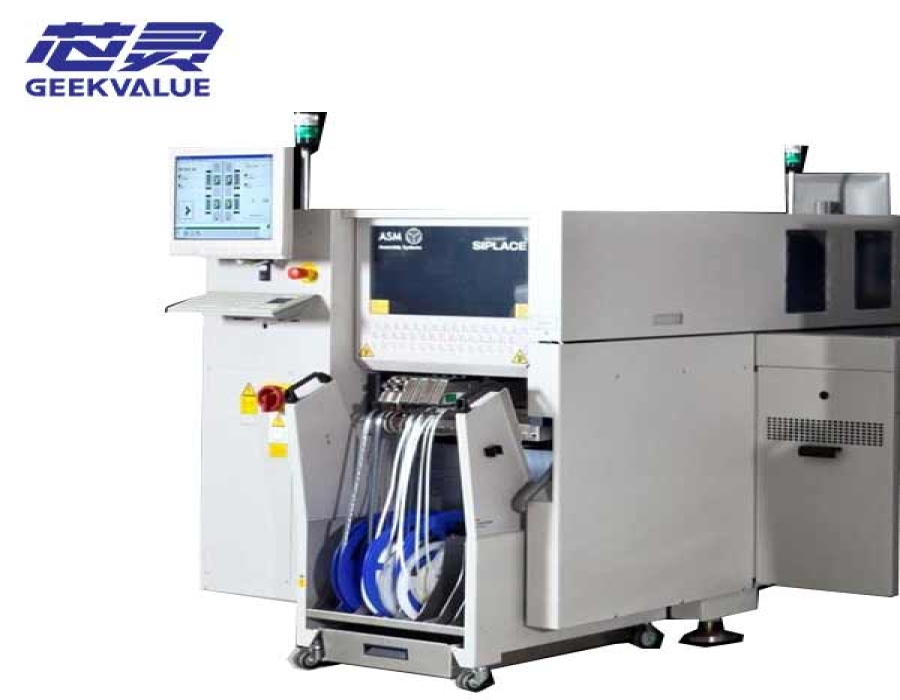

Siemens SIPLACE D2 dual-gantry SMT mounter with interchangeable C&P12 and C&P6 heads. Compare head configurations and benchmark placement rates.
The Siemens SIPLACE D2 uses two independently moving gantries, each fitted with a Collect & Place head. Rather than picking and placing every component individually, each head collects multiple parts from the feeder area before transferring them to programmed positions on the PCB. The head configuration can be changed between 12-nozzle C&P12 and 6-nozzle C&P6 units, allowing the machine's placement setup to be matched to different component mixes.
The choice of heads directly affects production output and component coverage. A dual-C&P12 configuration has a published benchmark rate of up to 31,000 components per hour, while a C&P12/C&P6 combination provides a different balance between placement speed and package handling. These are benchmark figures, not guaranteed production rates; actual output depends on the board program and machine condition.
| Machine Type | Dual-gantry SMT placement machine |
|---|---|
| Placement Gantries | 2 |
| Placement Heads | C&P12 and C&P6 Collect & Place heads |
| Maximum IPC 9850 Rate | 27,200 CPH with 2 × C&P12 |
| Maximum SIPLACE Benchmark | 31,000 CPH with 2 × C&P12 |
| C&P12 Component Range | Up to approximately 18.7 × 18.7 mm, depending on camera and option package |
| C&P6 Component Range | Approximately 0201 to 27 × 27 mm |
| Maximum Component Height | C&P12: approximately 6 mm; C&P6: approximately 8.5 mm |
| Feeder Capacity | Up to 90 tracks with compatible 3 × 8 mm S feeder modules |
| Component Tables | 2 removable component tables |
| Conveyor | Single conveyor or flexible dual conveyor |
| Maximum PCB Format | Up to approximately 610 × 508 mm with the required conveyor options |
