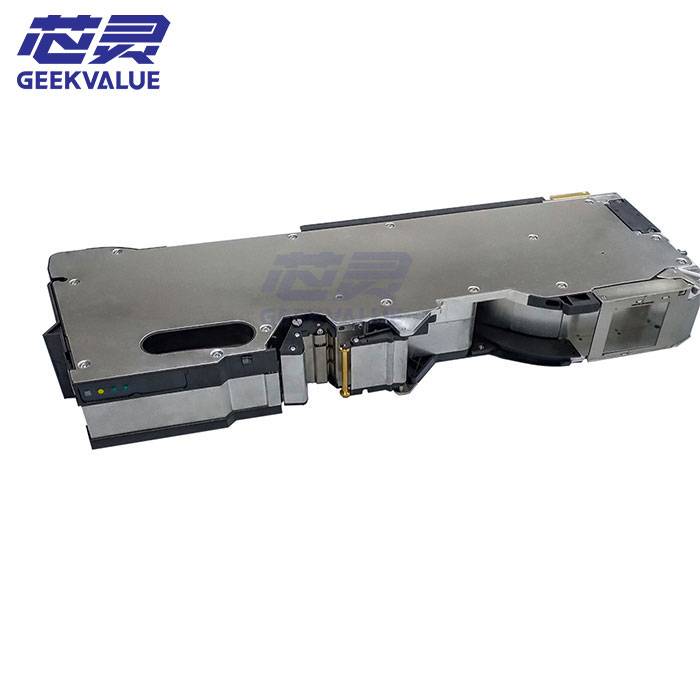

The ASM SIPLACE 56mm X Smart Feeder (00141376) handles carrier tapes up to 56 mm wide, making it suitable for component packages that require wider tape formats than standard chip feeders can accommodate. Its six-slot footprint on the SIPLACE X feeder table provides the space needed for the wider feed path, while the SmartFeeder interface supports automatic transfer of feeder setup data to the placement machine.
During production changeovers, the feeder can retrieve component and feeding parameters from the machine program, reducing manual setup steps. The 56 mm format is the key selection point: confirm tape width, component pocket dimensions and compatibility with the installed SIPLACE X platform before ordering.
We supply ASM SIPLACE X Smart Feeders, including the 56 mm model with part number 00141376. Splice-sensor versions use a different part number, so verify the exact variant required.
00141376 56mm X Smart Feeder Specifications
| Part Number | 00141376 |
|---|---|
| Feeder Type | SIPLACE X Smart tape feeder |
| Tape Width | 56 mm |
| Feeder Family | SIPLACE X Smart |
| Compatible Machine Series | X, Xi, XT, XS, D series |
| Positions Occupied | 6 × 8 mm feeder positions |
| Conveyor Increment | 4–64 mm in 4 mm steps |
| Splice Sensor Version | 00141396 |
The 00141376 and 00141396 versions share the same 56 mm feeder body and six-position footprint. The difference is the splice monitoring function: 00141396 is used when splice detection is required during tape replacement, while 00141376 is the standard configuration without splice monitoring.
For additional feeder configurations and sensor options, see the ASM SIPLACE feeder range.
