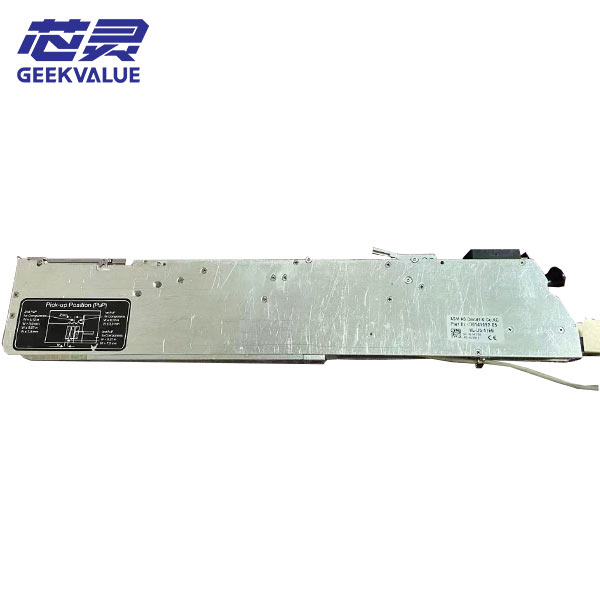

ASM SIPLACE 00141092 is a 12/16mm S-Feeder. The documented 00141092S05 configuration is designed for one 12mm or one 16mm tape and is specifically described as reconfigurable between those two tape-width applications.
That reconfigurable architecture is the key value of this P/N. For the documented S05 feeder, 12mm and 16mm are not two unrelated feeder identities; one feeder configuration covers either tape-width application when set up accordingly.
The revision still matters. The verified technical description belongs to 00141092S05 / 00141092-05, so another suffix should not automatically inherit every S05 specification or compatibility statement.
00141092 S-Feeder Specifications
| Part Number | 00141092 |
| Documented Revision | 00141092S05 / 00141092-05 |
| Product Type | SIPLACE S-Feeder |
| Tape Application | 1 × 12mm or 1 × 16mm on the documented S05 configuration |
| Width Configuration | Reconfigurable |
| Feeding Pitch | 4–16mm on S05 |
| Drive | Motorized with integrated cover foil removal |
| Matching Point | Confirm the complete suffix before applying S05 specifications |
When a feeding problem appears, separate tape-path resistance, drive behavior and cover-tape handling before replacing the complete feeder. A fault confined to one serviceable area should not automatically turn into a complete 00141092 replacement.
This ASM feeder also differs from the Hover-Davis 12/16mm SSF family. Both cover related tape widths, but their manufacturer identity, model structure and service references are different.
For quotation, send the full 00141092 label rather than only the seven-digit base P/N. Normal stocked feeder orders can be prepared for 24–48h dispatch once the revision and condition requirement are confirmed.
