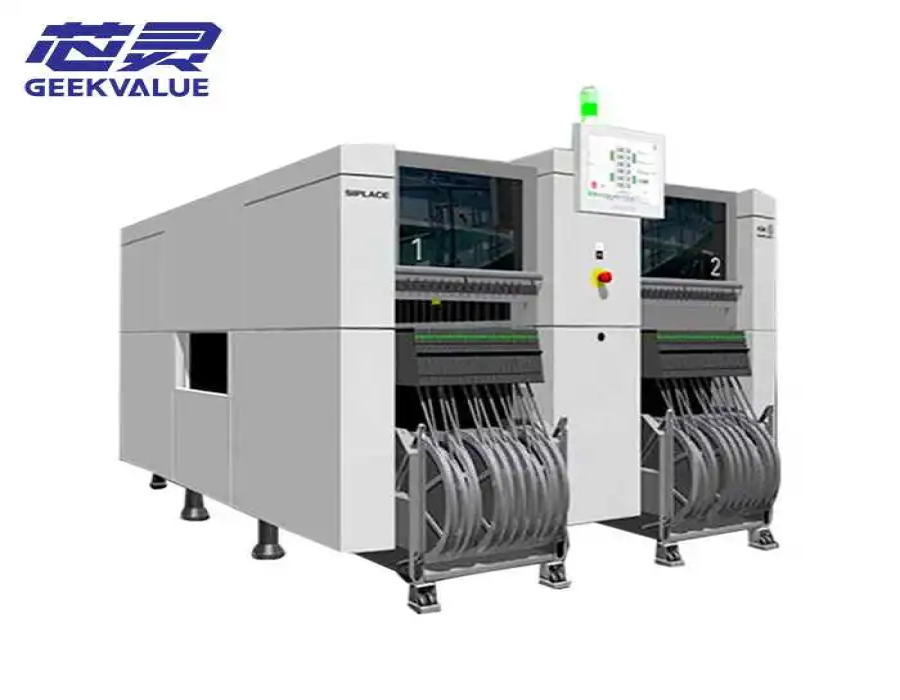

ASM SIPLACE X4 S High-Capacity SMT Placement Machine. Four coordinated gantries, up to 150,000 CPH, handles micro chips and large heavy components. Warpage compensation, dual/single track conveyor. Fully tested refurbished units with long-term service sup
Four independent gantries operate in coordinated motion to push throughput for high-volume PCB assembly on the SIPLACE X4 S. Linear motor drive cuts idle movement, delivering up to 150,000 CPH while maintaining tight placement repeatability.
The platform accepts mixed head configurations, switching between micro 01005 chips and large, heavy odd-form parts in one production run. Built-in closed-loop control and automatic PCB warpage correction counter board distortion during placement, lowering defect rates on dense server, automotive and industrial PCBs.
Single track mode handles large panels up to 685 mm wide and 8 kg board load; dual-track setup runs smaller boards side by side to boost line utilization. It works with SIPLACE X wireless feeders and supports offline programming plus self-teach functions, shortening NPI changeover time.
Every refurbished X4 S we offer goes through full mechanical, vision and placement validation. We include nozzle and feeder inspection, paired with ongoing spare parts and maintenance support to preserve uptime in mass production lines.
| Machine Type | Four-gantry high-capacity SMT placement machine |
|---|---|
| Placement Architecture | Two placement areas with two head positions in each area |
| Placement Heads | CP20 / SpeedStar, CPP / MultiStar and TWIN / TwinStar, depending on generation and configuration |
| Later Benchmark Performance | Up to 150,000 CPH with four corresponding high-speed heads |
| Later IPC Performance | Up to 130,000 CPH |
| High-Speed Head Component Range | Approximately 0201 metric to 8.2 × 8.2 × 4 mm with the applicable high-speed head configuration |
| Extended Component Capability | Larger, taller or special components require the appropriate CPP or TWIN configuration |
| Feeder Capacity | Up to 160 × 8 mm feeder positions |
| Single-Track PCB Format | Up to approximately 450 × 685 mm |
| Dual-Track PCB Format | Up to approximately 450 × 320 mm |
| Flexible Dual Conveyor | Up to approximately 450 × 600 mm in the applicable flexible dual-conveyor mode |
| Conveyor Options | Single conveyor or flexible dual conveyor; supported PCB format depends on operating mode and installed options |
