Explore pre-owned ASM SIPLACE X3 S SMT placement machines for high-output production, with configuration review, stock checking and quotation support.

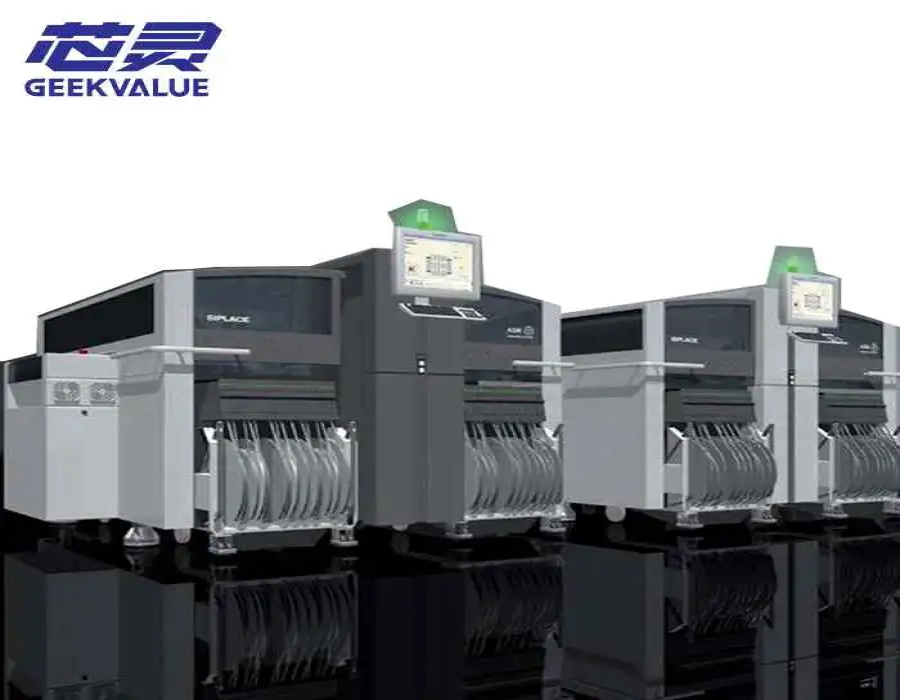

The ASM SIPLACE X3 S is a three-gantry SMT placement machine in the SIPLACE X-Series S platform, positioned for factories that need more placement capacity without moving directly to a four-gantry system. It is commonly considered for high-output production, line expansion, and replacement projects where an established SIPLACE platform remains a practical fit. For buyers evaluating pre-owned equipment, the X3 S provides access to this production class without the capital commitment of a new high-capacity placement system.
Its three independently operating gantries can be equipped with different placement heads to match the component mix and production role of the line. Depending on the machine generation and installed heads, an X3 S may be configured for high-speed chip placement, mixed-component assembly, or larger and more complex components.
Later ASMPT specifications list SIPLACE benchmark performance of up to 112,500 CPH. This figure is a reference rating rather than guaranteed factory output. Actual throughput is influenced by the PCB program, component mix, feeder layout, head combination, transport cycle, and overall line balance.
For a used X3 S, the model name alone is not enough to determine production fit. Buyers should confirm the installed heads, conveyor setup, software generation, feeder package, machine condition, and available inspection records before selecting a unit for a specific SMT line.
| Parameter | Details |
|---|---|
| Model | ASM SIPLACE X3 S |
| Series | SIPLACE X-Series S |
| Gantry Configuration | Three independently operating placement gantries |
| Placement Heads | CP20, CPP and Twin Head options, depending on machine generation and installed configuration |
| Placement Speed | Up to 112,500 CPH SIPLACE benchmark; actual production output depends on the PCB program and line conditions |
| Placement Accuracy | Up to 25 µm |
| PCB Size | Up to 450 × 685 mm with single-track conveyor; 450 × 320 mm dual-track; long-board option up to 800 mm |
| Component Range | Head dependent: CP20 for small components, CPP for flexible mixed-component placement, and Twin Head for larger or special components |
| Feeder Capacity | Up to 160 feeder positions |
| Conveyor Mode | Single-track and dual-track configurations available |
The X3 S makes the most sense when a two-gantry SIPLACE X2 S no longer provides enough placement capacity, but the production plan does not require the maximum output of a four-gantry system. Its position between the X2 S and X4 S gives manufacturers another capacity step without selecting a larger machine simply for the highest published CPH figure.
For factories already using SIPLACE equipment, staying within the same platform family can also make an expansion or replacement project easier to evaluate. The decision should still be based on the actual PCB BOM, required cycle time, component range, and installed head combination. If maximum X-Series S placement capacity is the priority, the ASM SIPLACE X4 S should also be evaluated before purchase.
The ASM SIPLACE X3 S is best suited to manufacturers that need a clear step up in placement capacity while retaining the flexibility of the X-Series S platform. It is less appropriate when two gantries already meet the production target or when the line requires the maximum capacity available from the series.
Contact our team to check available pre-owned SIPLACE X3 S stock, confirm the installed head and conveyor configuration, and request a quotation based on your PCB and target production requirements.
If you are not sure whether this product matches your machine, send us the model, label photo or old part picture for checking.
