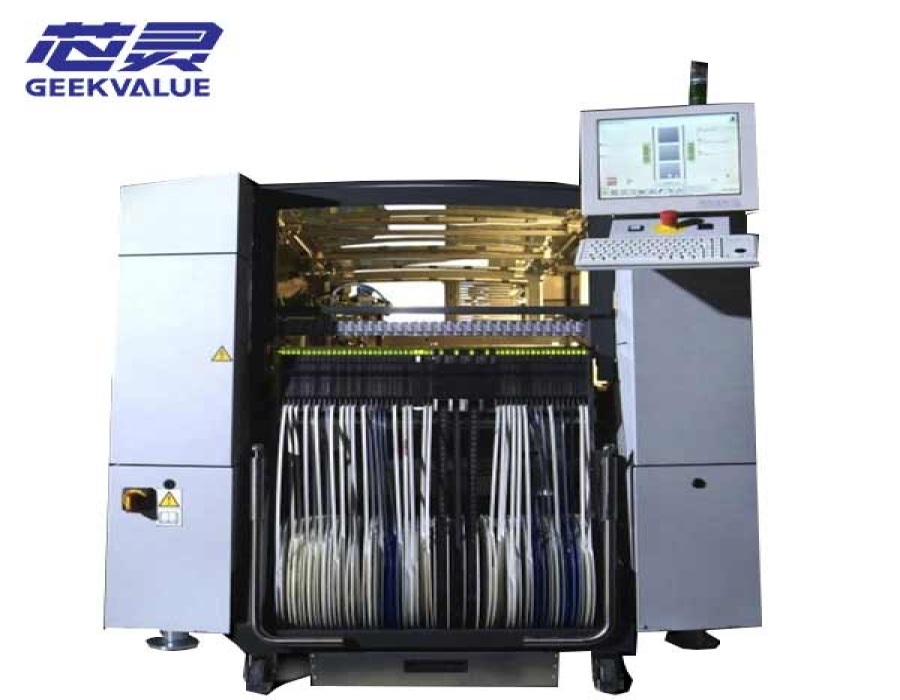

Explore the ASM SIPLACE SX1 modular mounter, featuring flexible gantry allocation and multiple placement-head options for SMT production.
The ASM SIPLACE SX1 features ASM’s Capacity on Demand concept, allowing compatible gantries to be redistributed between machines as production requirements change. With support for up to 120 feeder positions for 8 mm feeders, the SX1 offers flexibility in feeder arrangement and placement-head configuration.
CP20P2, CPP and TWIN head options address different component-placement requirements, while single-track or dual-track transport configurations provide further production-line flexibility. Actual capabilities depend on the installed configuration.
We supply used ASM SIPLACE SX1 machines. Contact us for available specifications, configuration details and machine condition.
| Parameter | Details |
|---|---|
| Model | ASM SIPLACE SX1 |
| Gantry Configuration | One removable placement gantry |
| Placement Heads | CP20, CPP or TWIN, depending on machine generation and installed configuration |
| Placement Speed | Up to 43,250 CPH current platform reference |
| Placement Accuracy | ±25 µm @ 3σ platform reference; head-specific performance varies |
| PCB Size | Up to 450 × 560 mm single-track; 450 × 265 mm dual-track; long-board option up to approximately 1,525 × 560 mm |
| Component Range | From small standard components to large and odd-shaped parts according to the installed placement head |
| Feeder Capacity | Up to 120 positions for 8 mm feeders |
| Conveyor Mode | Single-track or flexible dual-track conveyor |
The values above are ASMPT platform references. Earlier SX generations may use different head designations or published ratings, so the nameplate, gantry, head, conveyor and software configuration of the individual used machine should be confirmed.
If you are not sure whether this product matches your machine, send us the model, label photo or old part picture for checking.
