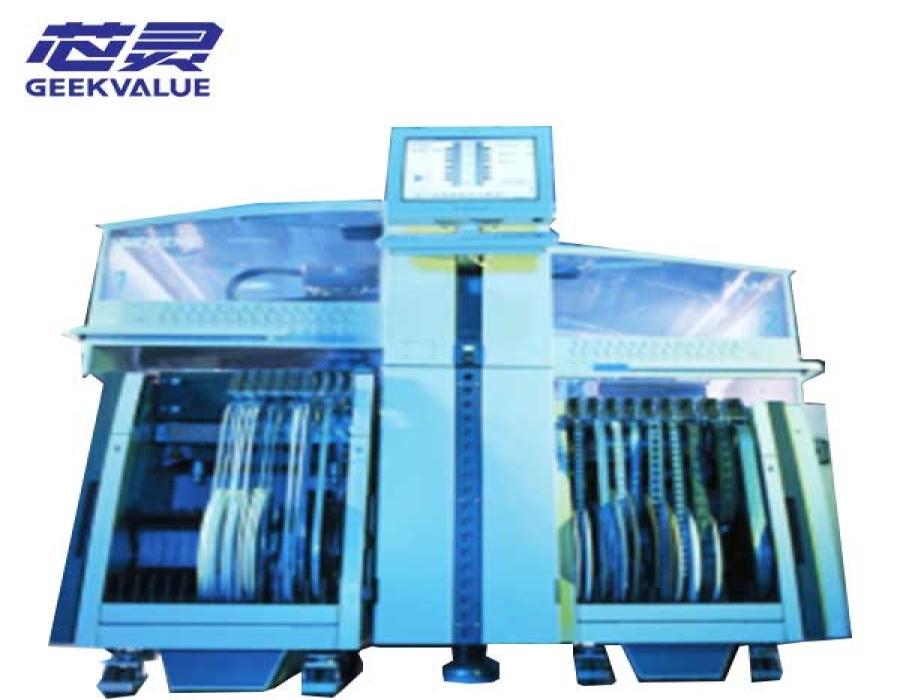

Used ASM SIPLACE HF3 three-gantry SMT placement machine combining high-speed chip placement with odd-form component handling.
The ASM SIPLACE HF3 combines a three-gantry placement architecture with high-speed chip placement and odd-form component handling. This combination is the defining feature of the platform: production lines can evaluate it for assembly work involving both conventional SMD components and parts that require different placement or handling capabilities.
The practical value of an HF3 depends on the installed configuration, particularly the placement heads and odd-form handling options. These determine the component range the machine can process, so configuration details matter when matching a used unit to an existing PCB assembly process.
| Parameter | Reference Specification |
|---|---|
| Machine Type | Flexible three-gantry SMT placement machine |
| Gantries | 3 |
| Placement Head Options | 12-nozzle Collect & Place, 6-nozzle Collect & Place and TwinHead |
| Published Placement Output | Up to approximately 45,000 CPH in published product material; actual benchmark depends on the installed head combination |
| 12-Nozzle Head Role | Higher-speed placement of smaller standard SMD components |
| 6-Nozzle Head Role | Broader placement range for standard SMDs and larger IC packages |
| TwinHead Role | Large, fine-pitch and special-component Pick & Place |
| Published Component Range | Approximately 0201 to 85 × 85 mm or elongated components up to approximately 155 × 30 mm, depending on head and vision configuration |
| Maximum Component Weight | Up to approximately 100 g for applicable TwinHead applications |
| Best Reference Accuracy | Approximately 30 µm at 4σ with TwinHead |
| Feeder Capacity | Up to 180 tracks based on 8 mm tape width |
| Single-Conveyor PCB Format | Approximately 50 × 50 mm to 450 × 508 mm |
| Optional Long-Board Length | Up to approximately 610 mm with the required option |
| Conveyor Options | Single conveyor, dual conveyor and flexible dual-conveyor configurations |
These are OEM reference capabilities rather than guaranteed output from every used HF3. The three installed heads, vision modules, conveyor, feeder tables, nozzles and software determine what an individual machine can actually produce, so configuration should be confirmed before price comparison.
