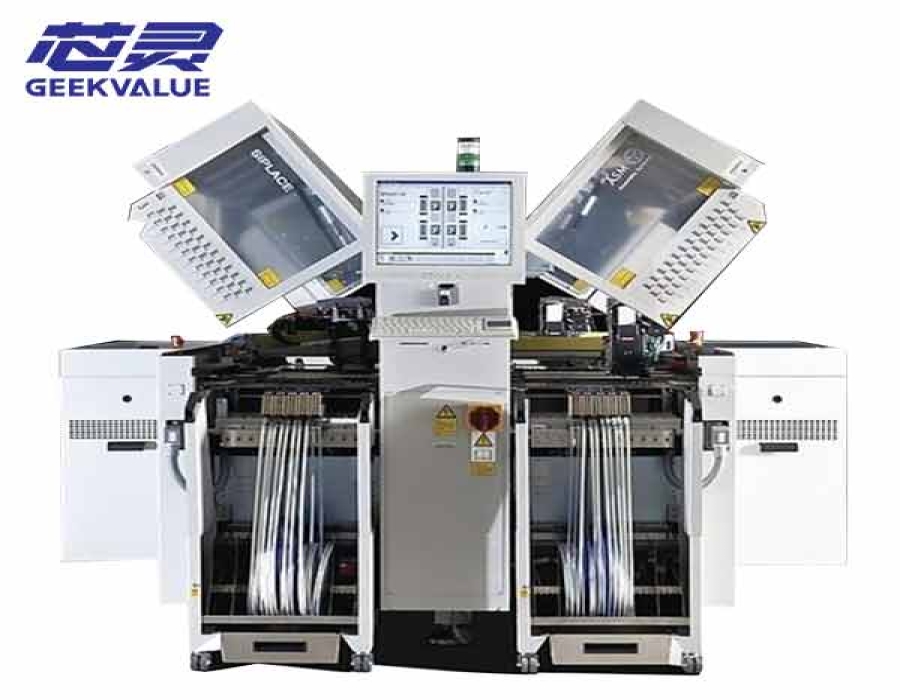

Used ASM SIPLACE D4i four-gantry SMT mounter with four C&P12 heads, 66,000 CPH benchmark, flexible dual conveyor and optional 01005 support.
On a high-volume SMT line, four fast placement heads only create value when PCB transfer, material preparation and product changeovers do not leave the machine waiting. Multiple used ASM SIPLACE D4i units are available with different camera packages, conveyor configurations, feeder equipment, software and machine condition. The best unit is the one that supports both the required placement load and the way boards actually move through the customer's line.
The D4i uses four 12-nozzle Collect & Place heads. Original documentation lists 57,000 CPH under IPC conditions, 66,000 CPH under the SIPLACE benchmark and 81,500 CPH as the theoretical maximum. With the standard camera configuration, the head is focused on small and medium standard components. 01005 placement down to approximately 0.4 × 0.2 mm requires the corresponding high-resolution camera, dedicated package, nozzles, compatible feeders and supporting software.
The D4i also provides production features that protect output between placement cycles. A flexible dual conveyor can run synchronously or asynchronously, allowing two-board handling or independent PCB transfer where the product benefits from it. Four removable component tables can be prepared away from active production, helping reduce the amount of machine time consumed during feeder setup and product changeover.
The D4i is a strong fit for component-dense production where small and medium SMD placement is a major part of the cycle and the line can benefit from four-gantry output. It is not the best standalone choice for products dominated by large connectors, tall parts or heavy odd-shaped components. Buyers comparing D Series machines should use the SIPLACE D Series range to decide whether high-speed chip placement or broader component flexibility is the more important requirement.
| Parameter | Reference Specification |
|---|---|
| Machine Type | Four-gantry high-speed SMT placement machine |
| Gantries | 4 |
| Placement Heads | 4 × 12-nozzle Collect & Place heads |
| IPC Placement Rate | 57,000 CPH |
| SIPLACE Benchmark | 66,000 CPH |
| Theoretical Maximum | 81,500 CPH |
| Standard Minimum Component Size | Approximately 1.0 × 0.5 mm with the standard camera configuration |
| 01005 Capability | Approximately 0.4 × 0.2 mm with the required high-resolution camera and 01005 package |
| Maximum Component Size | Approximately 18.7 × 18.7 mm |
| Maximum Component Height | Approximately 6 mm |
| Maximum Component Weight | Approximately 2 g |
| Placement Accuracy | Approximately ±50 µm at 3σ |
| Placement Force | Approximately 2.4–5.0 N |
| Feeder Capacity | Up to 144 tracks with compatible 3 × 8 mm S feeder modules |
| Maximum PCB Format | Up to approximately 610 × 508 mm with the required long- and wide-board options |
| PCB Thickness | Approximately 0.3–4.5 mm as standard |
| Maximum PCB Weight | Approximately 3 kg |
| Conveyor Options | Single conveyor or flexible dual conveyor |
The maximum PCB format and 01005 capability both depend on optional equipment. They should be confirmed from the actual conveyor, camera, nozzle, feeder and software configuration of the used machine.
| Production Factor | How the D4i Can Help |
|---|---|
| Short PCB placement cycles | Asynchronous dual-lane transport can reduce time lost while the next board enters or the completed board leaves the machine. |
| Frequent product changes | Removable component tables allow the next feeder setup to be prepared while the current product is still running. |
| High count of small SMD placements | Four C&P12 heads provide the placement capacity needed to keep small-component work from becoming the main cycle-time bottleneck. |
| 01005 production | The optional high-resolution camera and 01005 package extend the platform to ultra-small components when the complete required setup is present. |
| Long placement cycles on one large PCB | Dual-lane transport may add little value when board-transfer time represents only a small part of the total cycle. |
For a used D4i, high output should be verified as a complete system. Stable operation of all four heads, correct vision configuration, feeder pickup, PCB transport and software setup matter more than the theoretical 81,500 CPH figure shown in the original specification.
The D4i is most valuable when the factory can use both sides of its design: four-head placement capacity and efficient material and PCB flow. Current configuration information, powered-on operation and available test evidence should be reviewed before the final machine is selected.
If you are not sure whether this product matches your machine, send us the model, label photo or old part picture for checking.
