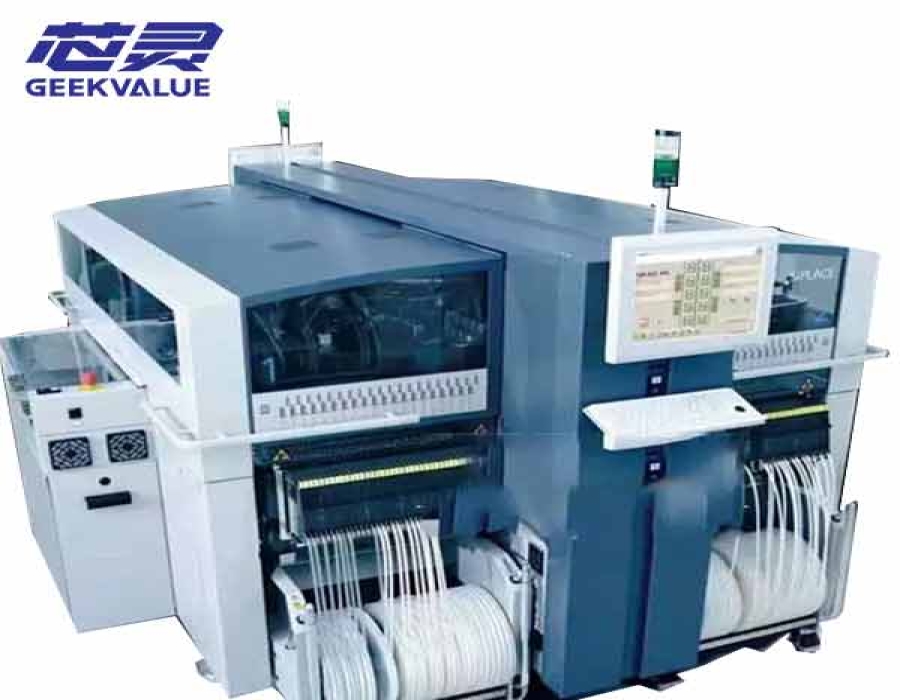

ASM SIPLACE D3i three-gantry SMT placement machine with configurable placement-head options for high-speed chip assembly and mixed-component PCB production.
The ASM SIPLACE D3i has three placement gantries, allowing placement work to be distributed across multiple heads rather than relying on a single placement unit. Its Collect & Place configuration picks up several components before placing them, while compatible Pick & Place heads can handle packages that require individual pickup and positioning. The combination of heads determines whether a machine configuration prioritizes chip-placement throughput or a wider component mix.
The D3i's three-gantry architecture is particularly relevant when balancing placement workload across a production line. If one head handles slower or more complex components, its cycle time can limit overall output even when the other gantries have spare capacity. For used equipment, the installed head combination and feeder layout are therefore more informative than a headline speed figure alone.
| Machine Type | Three-gantry SMT placement machine |
|---|---|
| Placement Structure | Three gantries with configurable placement head combinations |
| Placement Heads | C&P12, C&P6 and TwinHead depending on configuration |
| Maximum IPC Performance | 37,600 CPH |
| SIPLACE Benchmark | 40,400 CPH |
| Theoretical Performance | 61,000 CPH |
| C&P12 Component Range | Up to approximately 18.7 × 18.7 mm depending on configuration |
| C&P6 Component Range | Up to approximately 27 × 27 mm depending on configuration |
| TwinHead Component Range | Up to approximately 125 × 200 mm depending on configuration |
| Placement Force | Approximately 1N–30N depending on head configuration |
| Placement Accuracy | Approximately ±22 μm @ 3σ |
| Feeder Capacity | Up to 180 tracks with compatible 3 × 8 mm S feeder modules |
| PCB Conveyor | Single conveyor or flexible dual conveyor |
| Single Conveyor PCB Size | Approximately 50 × 50 mm to 610 × 508 mm depending on configuration |
| Dual Conveyor PCB Size | Approximately 50 × 50 mm to 610 × 430 mm depending on configuration |
Confirm the head installed on the third gantry and whether it is a C&P head or TwinHead. TwinHead capability must be verified on the installed head package, not assumed from the model name.
Check the supplied feeder quantity and types against the BOM. The 180-track platform capacity does not guarantee a complete feeder package, and a D3i with three capable gantries can still lose output if the feeder layout cannot support the installed heads efficiently.
Confirm camera and software configuration when fine-pitch, small-component or special-component placement is required. The D3i name alone does not confirm 01005 capability or the complete vision package required for a specific application.
Send the PCB dimensions, component range, placements per board, BOM complexity and target board cycle. We can confirm whether the available D3i configuration matches the production requirement. If the program does not require TwinHead-level component handling and a simpler C&P configuration already covers the workload, we will identify that before recommending the D3i.
