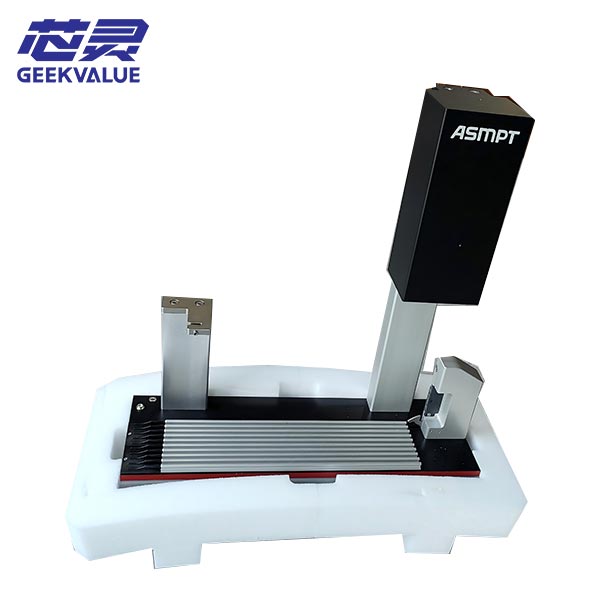

ASM SIPLACE 03126186 is the X-Feeder Verification System used to test feeder modules away from the placement machine. Its main value is not simply feeder calibration: it gives maintenance teams a controlled way to check feeder functions and verify pickup-position repeatability before a repaired or suspect feeder is returned to production.
This is especially useful when a feeder shows repeated pickup problems but the root cause is still unclear. Instead of repeatedly testing the same feeder on the production machine, XFVS allows the feeder itself to be checked separately. That helps distinguish a feeder-side problem from a machine-side problem and reduces trial-and-error troubleshooting on the line.
ASM SIPLACE 03126186 XFVS Specifications
| Part Number | 03126186 |
|---|---|
| Documented Revision | 03126186-04; match the complete system label |
| Product Type | X-Feeder Verification System |
| Supported Feeder Modules | X Feeder 4–88 mm, SmartFeeder 2×8 mm X, SmartFeeder 4–88 mm X |
| Functional Checks | Drives, control panels and buttons, splice sensors, rocker functions |
| Optical Verification | Pickup-position repeat accuracy |
| Test Documentation | Detailed test reports can be saved and printed as PDF or CSV files |
| Core Use Case | Offline feeder verification before returning a repaired or suspect feeder to production |
For related feeder products, see ASM SIPLACE feeders and feeder parts. XFVS is documented for specific X and SmartFeeder modules, so compatibility should be confirmed from the feeder type and system revision rather than assuming that every SIPLACE feeder generation can be tested on the same station.
One of the strongest uses for 03126186 is after feeder repair. A feeder may power up and move correctly on the bench but still have an unstable pickup position or a remaining module-level fault. XFVS allows the maintenance team to check the feeder functions and pickup repeatability before the feeder is released back to the SMT line, reducing the risk of finding the same fault again during production.
The same logic also helps during fault isolation. If a feeder continues to show pickup or communication problems, testing it independently can help determine whether the fault follows the feeder or remains with the placement machine. This makes the verification station useful as both a maintenance tool and a feeder-release checkpoint.
If the feeder test result is difficult to interpret, our technical team can review the feeder model, XFVS test result, fault description, photos and video remotely to help narrow the repair direction before the feeder is returned to service.
03126186 can be supplied for feeder-maintenance and verification requirements. For factories maintaining multiple X-Feeder or SmartFeeder modules, the system provides a repeatable offline verification step and documented PDF / CSV test records before feeders are released back to production. A formal specification confirmation sheet can also be provided for internal purchasing approval.
Send the XFVS system label, feeder models to be tested, required quantity and current verification requirement for compatibility confirmation and formal quotation.
