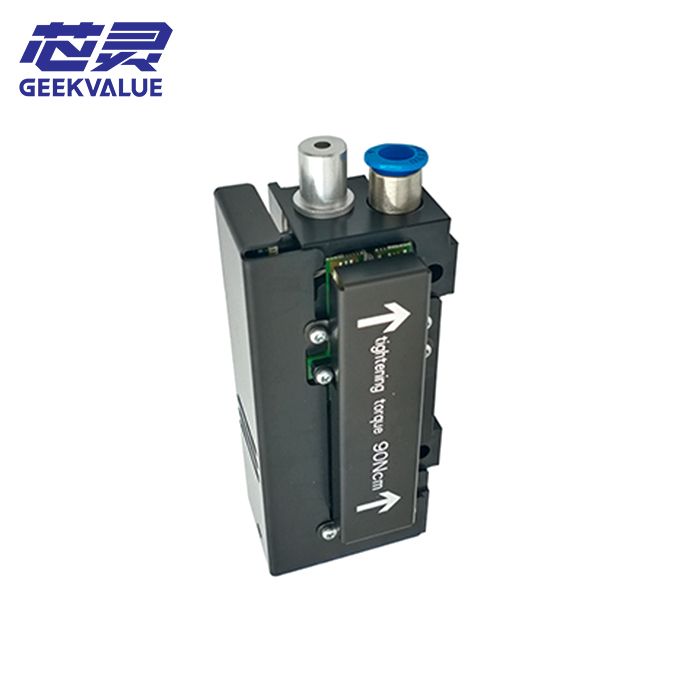

ASM SIPLACE 03136795 is the pressure control valve (PRV) used on the CP20 P2 placement head. It is not simply a vacuum generator. SIPLACE service documentation shows that this assembly interfaces with the compressed-air supply, the vacuum / air-blast circuit used for pickup and placement, the energy and data connection, and the exhaust-air path for X linear-motor cooling.
That wider system role makes exact matching important. A CP20 P2 PRV should be selected from the original valve label and installed head configuration rather than from the generic description vacuum generator or pressure regulator. A related CP20P pressure-control part, 03106620, is documented separately for the earlier CP20P head family and should not be assumed interchangeable with 03136795.
Replacement is also more than a simple pneumatic swap. The service procedure requires the head to be removed, the connected hoses and electrical connector to be transferred correctly, and a zero correction to be performed after installation. When a CP20 P2 pneumatic fault has been narrowed to the PRV, replacing this assembly keeps the repair at valve level instead of unnecessarily expanding to the complete placement head.
ASM SIPLACE 03136795 Valve Specifications
| Part Number | 03136795-xx; confirm the complete suffix from the installed valve |
|---|---|
| Part Type | Pressure Control Valve (PRV) |
| Head Application | SIPLACE CP20 P2 / SpeedStar |
| Common Selection Risk | Confusion with vacuum-generator terminology or pressure-control components for earlier CP20 / CP20P head generations |
| Documented Interfaces | Compressed air, vacuum / air blast for pickup and placement, energy / data supply and exhaust-air path |
| Related CP20P Part | 03106620 – separately documented CP20P pressure-control / regulator reference; do not assume interchangeability |
| Installation Requirement | Zero correction is required after PRV replacement |
| Core Matching Point | Complete valve label, CP20 P2 head type, hose / connector configuration and installed PRV position |
For the larger assembly context, see the ASM SIPLACE CP20 P2 Placement Head 03126608. If the pneumatic fault has not yet been isolated, the PRV hoses, compressed-air connection, electrical connector and surrounding pickup / placement air path should be reviewed before the complete head becomes the replacement target.
If you are unsure whether 03136795 is the correct repair level, send the complete valve label, CP20 P2 head information, connector and hose photos, plus the available pneumatic or placement-head fault details. Our technical team can help narrow whether the problem remains at the pressure-control-valve level or should be traced further into the head pneumatic system.
03136795 is normally available for CP20 P2 maintenance, with confirmed orders typically dispatched within 24–48 hours and urgent head-repair requirements prioritized when needed. After the valve identity and head configuration are confirmed, we can prepare a specification confirmation sheet for engineering and purchasing approval.
