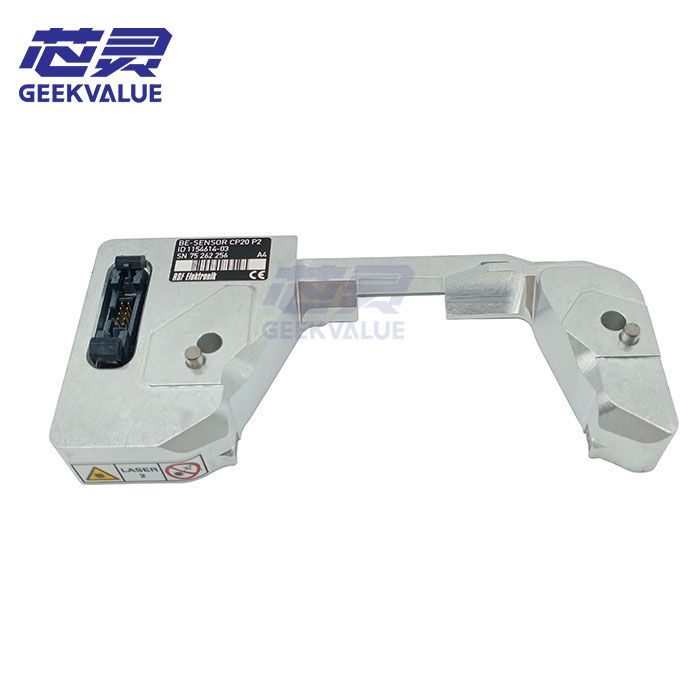

ASM SIPLACE 03133310 is the component sensor used on the C&P20 P2 placement head. The CP20 P2 service documentation identifies the sensor as its own replaceable head component alongside the component camera and Z-axis system, so it should be treated as a sensor-level repair item rather than a generic intelligent component sensor or a complete head assembly.
This part has an important service characteristic that is easy to miss during purchasing: the component sensor contains sensitive transmitter and receiver optics underneath the placement head. SIPLACE service instructions specifically require protection of this optical area during head work and warn against damage or contamination. Before condemning the sensor, the condition of the optical surfaces, electrical connection and surrounding installation should therefore be considered as part of the inspection.
03133310 CP20 P2 Sensor Service
| Part Number | 03133310-xx |
|---|---|
| Common Listed Version | 03133310-02 |
| Part Type | Component Sensor / BE Sensor |
| Head Application | ASM SIPLACE C&P20 P2 |
| Installation Position | Sensor assembly underneath the placement head |
| Sensitive Area | Transmitter and receiver lens system |
| Post-Replacement Requirement | Component sensor calibration after installation |
| Related Earlier Sensor | 03092400-02 – separately documented CP20P component sensor |
| Core Purchase Check | Full sensor P/N and suffix, CP20 P2 head identification, connector condition and installed sensor configuration |
Replacement of 03133310 requires component-sensor calibration after installation according to the CP20 P2 service procedure. Buyers should confirm that the maintenance team can complete the required calibration before returning the head to production.
The earlier 03092400 sensor is documented separately for CP20P, while 03133310 belongs to CP20 P2. Plants operating both head generations should keep those sensor records separated and should not infer interchangeability from the common “component sensor” description.
For 03133310 supply or replacement support, send the complete sensor label and CP20 P2 head information. If the sensor has already been removed, include photos of the connector and optical area so the correct sensor version can be confirmed before shipment and the maintenance team can plan the required post-installation calibration.
