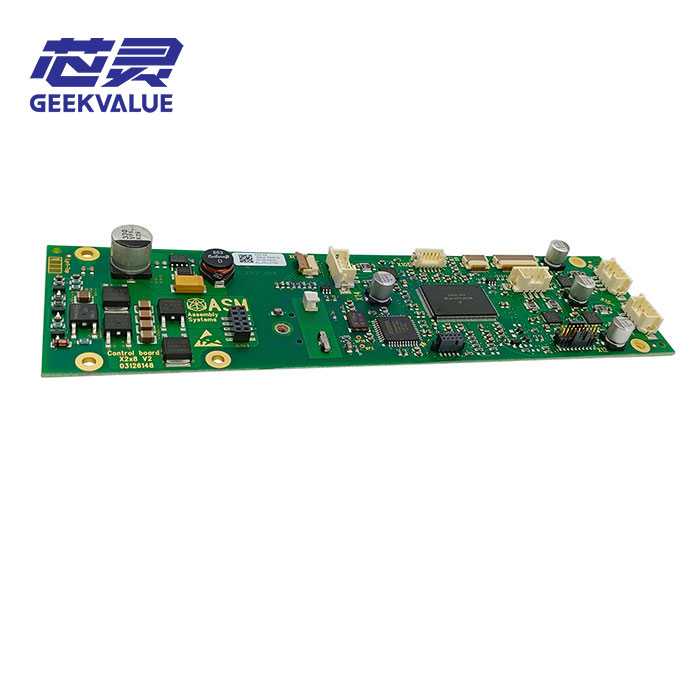

ASM SIPLACE 03126149 is an electronic control board used within ASM SMT equipment. Public parts records consistently identify 03126149 as an ASM control board, but reliable documentation does not currently establish a specific machine subsystem or confirm that it is universally interchangeable with visually similar SIPLACE boards.
For procurement, the safest matching method is therefore the complete part number together with the physical board configuration. Before replacement, compare the original label, connector positions, PCB layout and installed machine position rather than selecting the board only from appearance or a generic control-board description.
ASM 03126149 Control Board Specifications
| Part Number | 03126149 |
|---|---|
| Part Type | Electronic control board / control card |
| Brand | ASM SIPLACE |
| Application | ASM SMT equipment electronic control system |
| Subsystem | Confirm from the installed machine position and original board label |
| Primary Matching Data | Complete P/N, PCB layout, connector arrangement and installed position |
| Replacement Decision | Do not substitute a similar-looking SIPLACE board without confirming the exact application |
Match 03126149 Before Replacement
ASM machines use many compact control boards with similar PCB dimensions, connector styles and component layouts. That makes visual matching alone unreliable. A board that fits mechanically may still belong to a different feeder, head, conveyor or machine-control function.
For 03126149, record the full label before removing the original board and photograph both sides of the PCB together with its installed position. Connector count and orientation are also useful matching points, especially when the original machine documentation is incomplete.
If another suffix or replacement number appears on the existing board, it should not automatically be treated as interchangeable. The complete label should be checked before approving the replacement because hardware revisions or application boundaries may not be visible from the base number alone.
Control Board Fault Check
A machine alarm or loss of function does not automatically confirm control-board failure. Before replacing 03126149, check the board seating, power supply, connectors, ribbon cables and surrounding wiring for loose connections, contamination or visible damage.
If the affected function remains unclear, compare the fault with the installed position of the board. This helps separate a local connection or power-path problem from an actual PCB failure and can prevent unnecessary replacement of a working control card.
Our technical team can review the 03126149 label, front and rear board photos, connector layout, machine model, installation position and alarm information remotely to help confirm the replacement requirement. For other uncommon electronic components, see our ASM SMT spare parts finder.
03126149 can be supplied for ASM control-board repair requirements, with confirmed stock orders normally dispatched within 24–48 hours. For eligible board faults, exchange-repair service can also be arranged to reduce production waiting time. A formal specification confirmation sheet is available when purchasing teams require part-matching information before order approval.
Send the complete board label, machine model, installation position and clear PCB photos for compatibility checking and quotation.
