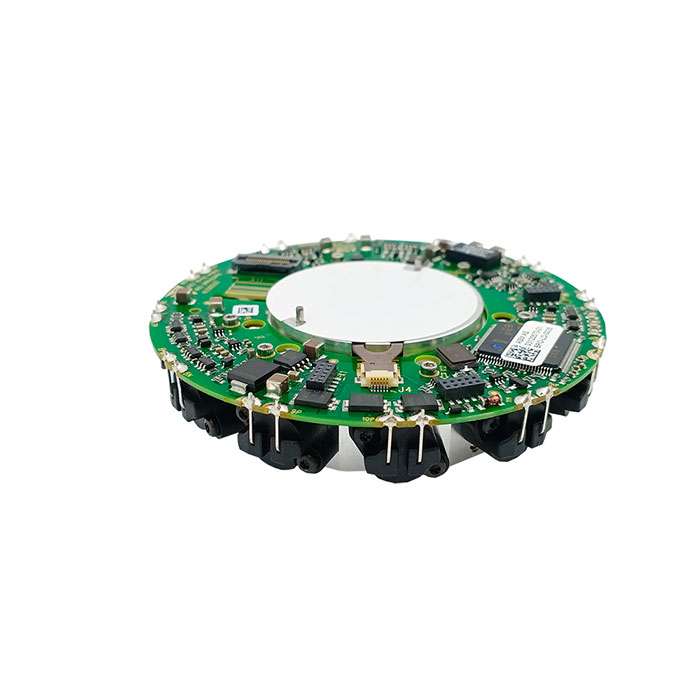

The Valve Terminal Control Unit is distinct from an individual pressure-control valve. Rather than describing this part as a standalone regulator, its name identifies it with the control side of the CPP valve-terminal assembly.
For maintenance teams, this distinction helps narrow the required replacement: a control unit and the valves it coordinates are separate items in the spare-parts inventory. The 03115167 reference should be matched to the existing terminal and machine configuration before substitution.
We supply ASM SIPLACE electronic and pneumatic-system spare parts for SMT equipment maintenance and can check availability of this control unit.
03115167 CPP Specifications
| Part Number | 03115167 |
| Documented Reference | 03115167-01 |
| Part Type | CPP valve terminal / disc control unit |
| Application | CPP placement-head pneumatic control area |
| Assembly Level | Head-related control assembly |
| Key Diagnostic Point | Separate local pneumatic-path faults from the control-unit fault |
| Matching Requirement | Use the complete installed label and CPP configuration |
