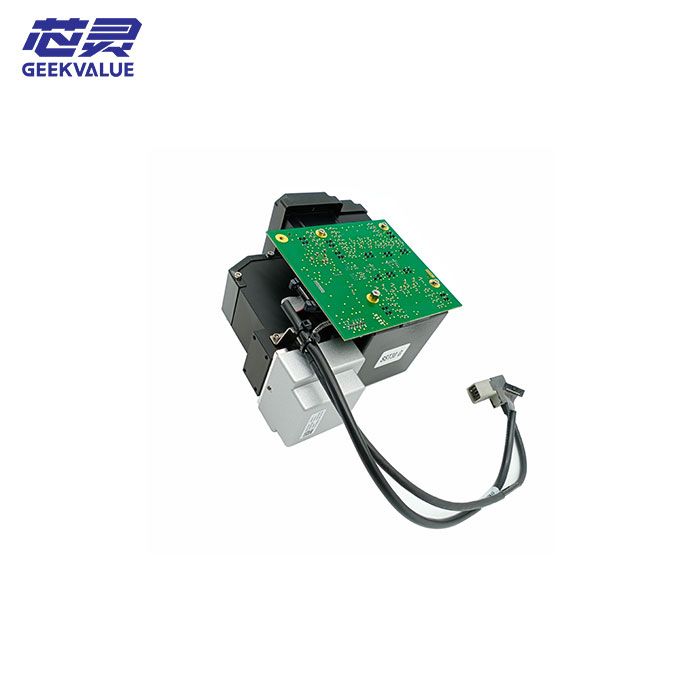

A Type 30 / 27×27 description alone is not enough to identify ASM SIPLACE 03101672. This P/N is the GigE version of the C+P Type 30 component camera, so the communication generation is part of the replacement decision, not a secondary specification.
The closest selection trap is 03085394. Both parts appear under the Type 30 / 27×27 camera family, but SIPLACE parts records list 03101672 as the GigE camera and 03085394 as a separate Type 30 27×27 camera; earlier SIPLACE documentation identifies 03085394 as the digital version. For machines with previous repairs or configuration changes, matching only the Type 30 name can therefore lead to the wrong camera generation.
03101672 Type 30 Camera Matching
| Part Number | 03101672-xx |
|---|---|
| Camera Type | C+P Type 30 component camera |
| Camera Format | 27×27 |
| Interface | GigE |
| Closest Related Camera | 03085394 – separate Type 30 / 27×27 camera version |
| Main Selection Risk | Ordering by Type 30 and 27×27 description without confirming the camera generation and interface |
| Matching Check | Full camera label, suffix, connector layout, interface/cable arrangement and installed machine configuration |
When the removed camera is still available, use it as the primary reference. Compare the complete label and connector arrangement before using another Type 30 camera as a substitute. This is especially important on machines with incomplete maintenance records, where the currently installed vision hardware may not match the machine's original delivery configuration.
For an urgent 03101672 replacement, send clear photos of the camera label and connectors together with the machine configuration. Once the GigE version is confirmed, we can match the required unit and prepare the purchasing information without widening the order to unrelated vision components.
