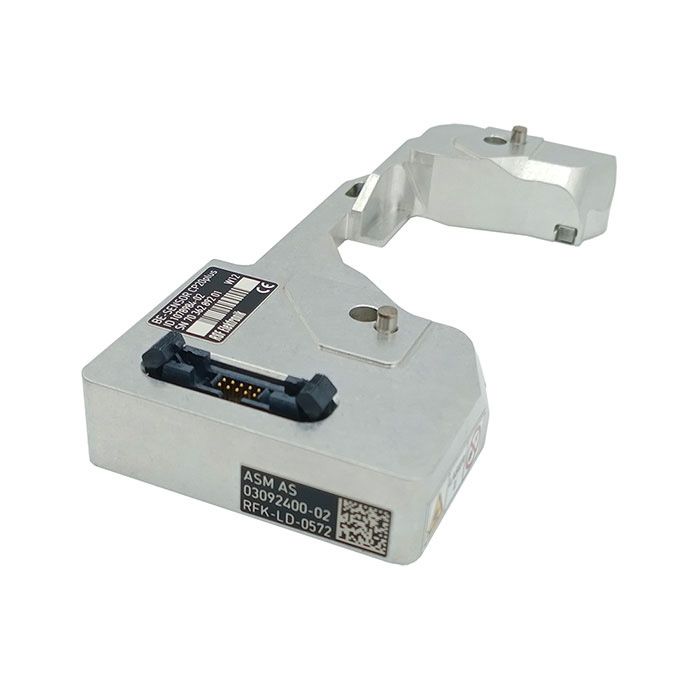

ASM SIPLACE 03092400 is the component sensor used with the CP20P placement-head generation. Its most important selection boundary is the head generation itself: CP20A, CP20P and CP20 P2 use separately documented sensor references, so these parts should not be grouped under one generic CP20 sensor description.
During maintenance, 03092400 is relevant when a CP20P head has a sensor-related fault under investigation or when service checks have already narrowed the problem to the component-sensor path. Connector condition, installed position and the original sensor label should still be checked before the sensor is replaced, because a head-level alarm alone does not identify one component as the cause.
03092400 CP20P Sensor Identification
| Part Number | 03092400; commonly documented as 03092400-02 |
|---|---|
| Part Type | Component Sensor / BE Sensor |
| Term Note | BE Sensor is retained as the documented part description; no unsupported acronym expansion is assumed |
| Head Generation | ASM SIPLACE CP20P |
| CP20A Reference | 03083001 – separately documented CP20A component sensor |
| CP20 P2 Reference | 03133310 – separately documented CP20 P2 component sensor |
| Main Selection Risk | Mixing sensors from different CP20 head generations because their general function is similar |
| Core Purchase Check | Complete sensor label, head generation, suffix, connector arrangement and installed position |
The practical risk of a generation mismatch is not just the cost of the wrong spare. If the supplied sensor does not belong to the installed CP20P configuration, the original head fault remains unresolved and the machine can stay unavailable while the correct part is sourced. For production lines carrying several CP20 generations, this also makes clear head-family identification important in local spare inventory.
For a CP20P requirement, provide the complete 03092400 label and head identification with the RFQ. Where an older label is unreadable, a clear connector and installation photo is more useful than selecting from the words “CP20 component sensor” alone.
