ASM SIPLACE 03085394 is a Type 30 27×27 digital component camera used in the C+P vision path. The 27×27 format is important for identifying the camera, but it is not enough on its own to select a replacement.
Parts references list 03101672 as another Type 30 27×27 C+P camera, but specifically identify that version as GigE. Because the two cameras are documented separately, 03101672 should not be treated as an automatic replacement for 03085394 simply because the Type 30 designation and image field are the same.
For procurement, match the complete installed camera label, suffix and interface. This is more reliable than selecting only from the camera family or 27×27 description.

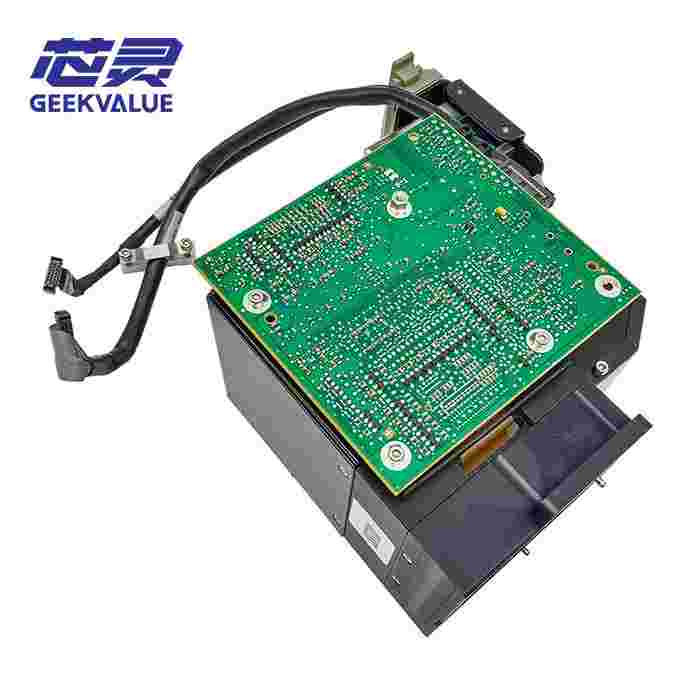

03085394 Camera Specifications
| Part Number | 03085394 |
| Product Type | Type 30 digital component camera |
| Vision Reference | 27×27 |
| Application | SIPLACE C+P component vision path |
| Assembly Level | Camera assembly |
| Confusing Part | 03101672 — Type 30 27×27 GigE camera |
| Matching Requirement | Confirm complete P/N, suffix and installed camera interface |
A camera-related production symptom should also be separated from the rest of the vision path before replacement. Image quality, contamination, camera connection and the surrounding vision system can all affect component recognition. Replacing the camera before narrowing the fault can move the repair to the wrong assembly level.
After a camera change, the applicable camera verification or calibration procedure should be completed before the machine is returned to normal production. This is especially important when the replacement involves a different stored camera or revision rather than the exact removed unit.
For other placement-head and vision-related components, see our ASM SIPLACE SMT head parts. If the existing camera identity is uncertain, send the full label, machine information and clear photos before quotation. We can also provide a formal specification confirmation sheet for internal purchasing approval.
