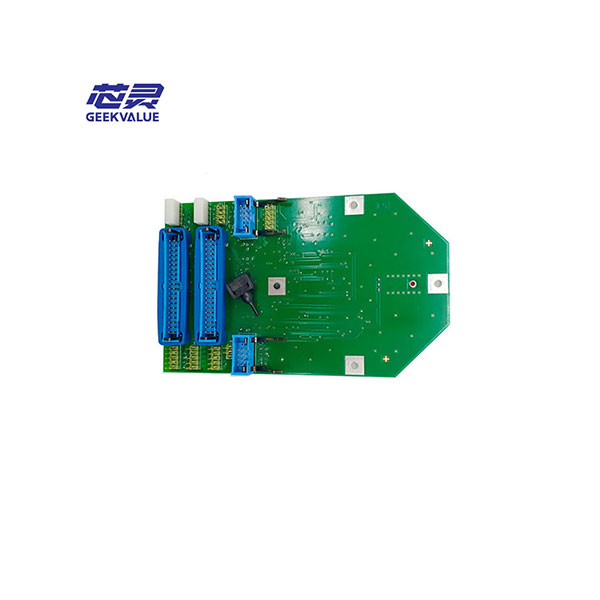

ASM SIPLACE 03082809S01 is the SP6_12 digital distributor PCB used within the 12-segment C+P Head DLM4. It is one specific electronic assembly inside the head, not a generic DLM4 control board and not the complete placement head.
This board becomes a relevant replacement target when diagnosis has narrowed a DLM4 head electrical or control problem to the distributor PCB position. The same head architecture contains other separately identified electronics, including the 03082806S01 interference-suppression PCB and 03083864S01 Z-motor with PCB, so a general description such as “DLM4 board” is not precise enough for purchasing.
Matching the wrong PCB can leave the original head fault unresolved and unnecessarily expand both diagnostic time and parts cost. The safest replacement basis is the original 03082809S01 label together with its installed position, connector arrangement and DLM4 head configuration. If those points do not match, another DLM4 electronic assembly may be the actual repair target.
ASM SIPLACE 03082809 Board Specifications
| Part Number | 03082809S01 |
|---|---|
| Part Type | SP6_12 digital distributor PCB |
| Application | 12-segment C+P Head DLM4 |
| Common Selection Risk | Confusion with other electronic assemblies inside the same DLM4 head |
| Related Head | 03082533S01 – 12-segment C+P Head DLM4 |
| Related DLM4 Electronics | 03082806S01 interference-suppression PCB; 03083864S01 Z-motor with PCB |
| Revision Note | 03082809S01 is a documented complete P/N; other suffixes should not be assumed interchangeable without confirmation |
| Core Matching Point | Original board label, installed position, connector layout and DLM4 head configuration |
The repair scope should be decided at the head level before the board is ordered. If the fault has already been isolated to the 03082809S01 position, replacing the distributor PCB can keep the repair focused on the affected electronic assembly rather than moving directly to the complete 03082533S01 head. For other placement-head parts and assemblies, see our ASM SIPLACE SMT head parts.
If the electronic fault boundary is still unclear, send the board label, photos of both PCB sides and connectors, the installed position, DLM4 head information and the relevant alarm or fault description. Our technical team can review these details remotely and help narrow which DLM4 electronic assembly should be checked before quotation.
03082809S01 is normally available for spare-parts supply, with confirmed orders typically dispatched within 24–48 hours. Urgent DLM4 head-repair requirements can be prioritized when needed. Once the board identity and installation position are confirmed, a specification confirmation sheet can also be prepared for engineering and purchasing approval.
