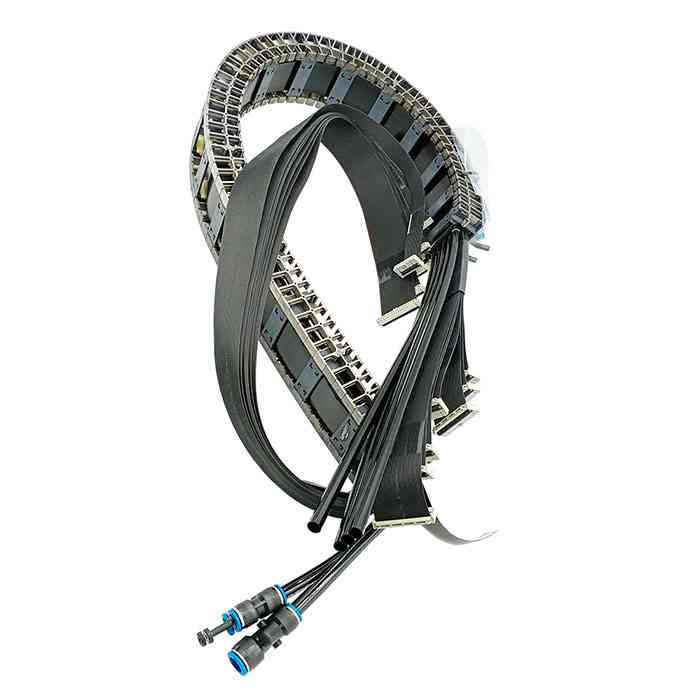

ASM SIPLACE 03075584 is a Y-axis trailing cable assembly used in the moving gantry service path of SIPLACE SX equipment. SIPLACE service documentation identifies 03075584-xx directly in the Y cable-drag replacement procedure, while spare-parts records describe the complete unit as a GR Y-Trailing Cable vacuum assembly.
The important maintenance point is that this is a moving trailing assembly, not simply a loose flat cable or an individual vacuum hose. The complete P/N, machine configuration, routing position and installed connections should therefore be checked before replacement. Other SIPLACE gantry and Y-axis cable assemblies use different part numbers and should not be selected only because their general cable description looks similar.
When investigating an intermittent problem, pay attention to whether the symptom changes as the gantry travels through the Y axis. A fault that appears only at particular positions can justify inspection of the moving cable and vacuum path, connectors, visible bending damage and hose condition before the repair scope is expanded to stationary machine electronics or other vacuum components.
ASM SIPLACE 03075584 Cable Specifications
| Part Number | 03075584-xx; confirm the complete suffix from the installed assembly |
|---|---|
| Part Type | Y-Axis Trailing Cable / Cable-Drag Assembly |
| Documented Description | GR Y-Trailing Cable vacuum cpl. |
| Machine Context | SIPLACE SX gantry / Y-axis service system |
| Assembly Level | Complete moving trailing-cable assembly rather than an individual loose cable |
| Common Selection Risk | Confusion with generic flat cables or trailing-cable assemblies for another SIPLACE gantry or machine configuration |
| Maintenance Check | Installed routing, connectors, cable condition, vacuum hose path and whether the fault changes with Y-axis movement |
| Core Matching Point | Complete P/N and suffix, SIPLACE machine configuration, gantry position, connection layout and original assembly routing |
For machine-level context, see the ASM SIPLACE SX Series. During troubleshooting, keep the moving Y-axis trailing assembly separate from stationary cables, vacuum-generation parts and other gantry cable sets so that the replacement stays at the actual fault level.
If the failure is intermittent, send the complete 03075584 label, machine model, gantry information, photos of both ends of the assembly and the cable-drag routing, together with details of when the fault occurs during machine movement. This information is more useful for confirming a trailing-cable problem than the general description “vacuum cable” alone.
03075584 requirements can be checked against available spare-parts stock for maintenance and production-recovery work. For an urgent machine stop, provide the complete label and machine configuration so the assembly can be matched before shipment rather than losing additional time to an incorrect trailing-cable version.
After the P/N, suffix and installation configuration are verified, a specification confirmation sheet can be prepared for maintenance and purchasing approval. Send the machine model, original assembly photos and required quantity for final confirmation and quotation.
