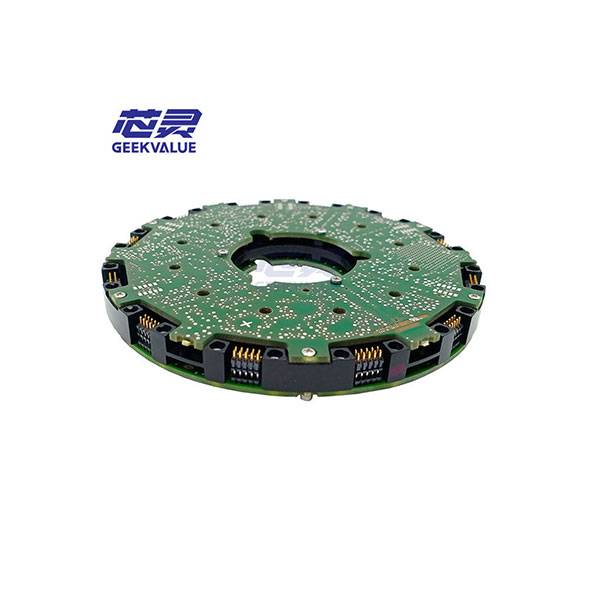

ASM SIPLACE 03054790 is an SCS control card used in the CPP placement-head system. It should be treated as a specific head-level electronic board rather than a generic CPP PCB or a complete placement-head replacement. Public parts records consistently identify 03054790 as a CPP SCS control card / SCS complete board.
Its main maintenance value is repair-scope control. When a CPP electrical or control problem has already been isolated to the SCS board position, replacing the identified card can keep the repair at PCB level instead of immediately replacing the complete CPP head. A general CPP fault, however, is not enough evidence to select 03054790 because the same head system contains other separately identified electronic assemblies.
In particular, 03081381-01 is documented as a CPP distributor and 03115167-01 as a CPP disc control unit. These parts belong to different electronic functions and should not be selected as substitutes for the 03054790 SCS card simply because they are all associated with CPP. Matching should begin with the original board label, connector arrangement and installed position.
ASM SIPLACE 03054790 Board Specifications
| Part Number | 03054790 |
|---|---|
| Part Type | CPP SCS control card / SCS complete board |
| Application | ASM SIPLACE CPP placement-head system |
| Common Selection Risk | Confusion with other CPP electronic assemblies such as 03081381-01 CPP distributor and 03115167-01 CPP disc control unit |
| Assembly Level | Board-level electronic component within the CPP head system |
| Revision Note | Multiple 03054790 suffix versions are documented in market records; do not assume different suffixes are interchangeable without configuration confirmation |
| Repair Decision | Confirm an SCS board-level fault before expanding the repair to other CPP electronics or the complete placement head |
| Core Matching Point | Original PCB label, complete P/N, connector layout, installed position and CPP head configuration |
For the larger assembly context, see the ASM SIPLACE CPP Placement Head 03053528. If the fault is still being isolated inside the head, keep each distributor, control and sensing board tied to its own P/N rather than grouping them together as interchangeable CPP electronics.
If the SCS board has not yet been confirmed as the fault source, send the existing 03054790 label, clear photos of both sides of the PCB and connectors, its installed position in the CPP head, and the available alarm or fault information. Our technical team can use these details to help narrow whether the repair should remain at SCS-card level or continue into another CPP electronic assembly.
03054790 requirements are normally supported from spare-parts stock, with confirmed orders typically dispatched within 24–48 hours and urgent CPP head-repair requirements prioritized when necessary. Once the board identity and configuration are confirmed, we can prepare the formal quotation together with a specification confirmation sheet for engineering and purchasing approval.
