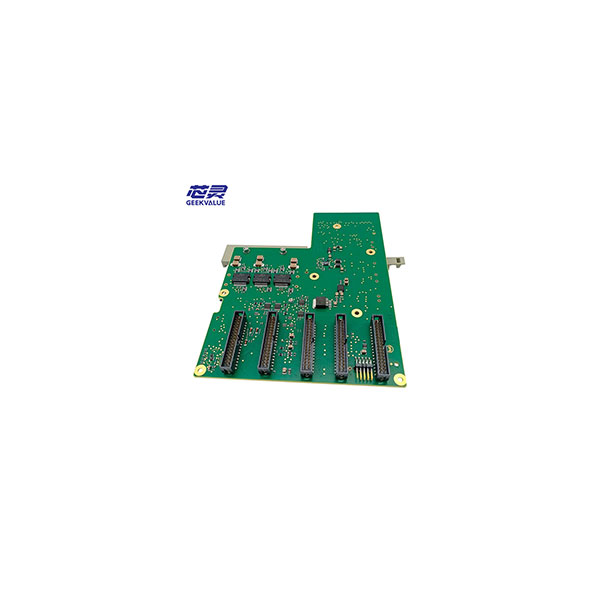

ASM SIPLACE 03039274-02 is the PC board assembly used in the HS50 placement head. It should be identified as an HS50 head-level electronic assembly rather than a generic track board, gantry distributor or machine control PCB.
The machine generation is an important matching boundary. A separate head PCB, 00348264-02, is documented for HS60 applications, so a board described only as an “HS head PCB” is not specific enough for purchasing. The existing board label and head configuration should be checked before assuming that similar HS50 and HS60 head electronics can be substituted.
For maintenance, 03039274-02 becomes relevant after an HS50 head electrical or control problem has been narrowed to the head-PCB level. Replacing the identified board can keep the repair inside the head electronics instead of immediately expanding the purchase to a complete placement head, but a general HS50 head fault alone is not enough to confirm this PCB as the failed component.
ASM SIPLACE 03039274 Head PCB Specifications
| Part Number | 03039274-02 |
|---|---|
| Part Type | PC Board for Head cpl. |
| Application | SIPLACE HS50 placement head |
| Common Selection Risk | Confusion with head PCBs for other HS-Series configurations, particularly 00348264-02 for HS60 |
| Assembly Level | Head-level electronic PCB assembly |
| Related HS60 Part | 00348264-02 – documented PC Board for Head cpl. HS60 |
| Suffix Caution | 03039274-02 is the documented HS50 reference; other 03039274 suffixes should not be assumed interchangeable without separate confirmation |
| Core Matching Point | Complete PCB label, HS50 head configuration, connector layout and installed position |
For machine context, see the Siemens SIPLACE HS50. Legacy HS-Series machines can contain different head generations and electronic configurations, so the machine model should be used together with the original PCB identification rather than as the only compatibility reference.
If the fault boundary inside the head is still uncertain, send the 03039274-02 label, clear photos of both PCB sides and connectors, the HS50 head information and the available alarm or fault description. Our technical team can review whether the repair is consistent with this head PCB or whether another head-level component should be checked before replacement.
03039274-02 is normally supported for HS50 legacy maintenance, with confirmed orders typically dispatched within 24–48 hours and urgent head-repair requirements prioritized when necessary. Once the PCB and head configuration are matched, we can confirm the supply scope and prepare a specification confirmation sheet for engineering and purchasing approval.
