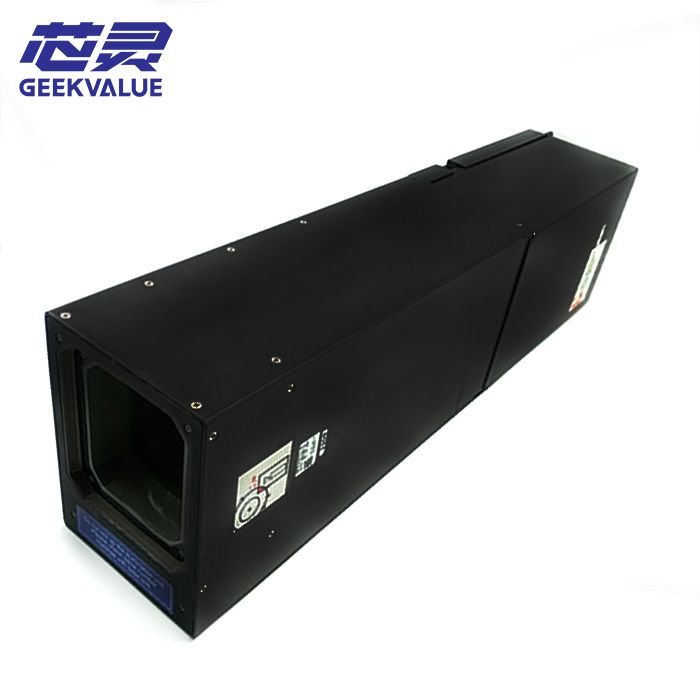

ASM SIPLACE 03016339 is the stationary Type 33 55×45 digital Pick & Place camera, also documented in machine configurations as SST33. It is a stationary machine-side vision camera rather than a camera integrated into the placement head.
A documented SIPLACE SX2 configuration uses 03016339-07 as the Stationary Camera SST33 alongside CPP and TwinHead placement heads. This confirms its role as part of the machine's stationary component-vision system.
03016339 SST33 Camera
| Part Number | 03016339 |
| Documented Example | 03016339-07 |
| Service Name | SST33 stationary camera |
| Camera Type | Type 33 |
| Format | 55×45 |
| Camera Generation | Digital |
| Later Type 33 Reference | 03105198 — Type 33 55×45 GigE |
The stationary role changes the diagnostic path. A recognition problem associated with SST33 should be checked at the fixed camera position, including optical condition, mounting, illumination and the machine-side connection path, rather than being treated automatically as a placement-head camera problem.
The later P/N 03105198 retains the Type 33 and 55×45 description but is documented as a GigE camera. This shows a generation boundary inside the Type 33 family without requiring an unsupported assumption that one P/N is a direct replacement for the other.
For maintenance teams, identifying the part as SST33 is useful because it connects the P/N with its actual installation role. That provides more practical information than the old generic description digital alignment camera.
Send the complete 03016339 suffix, SST33 label and a photo of the stationary camera position when sourcing a replacement. Other machine-side and placement-head vision assemblies are available under ASM SIPLACE spare parts.
