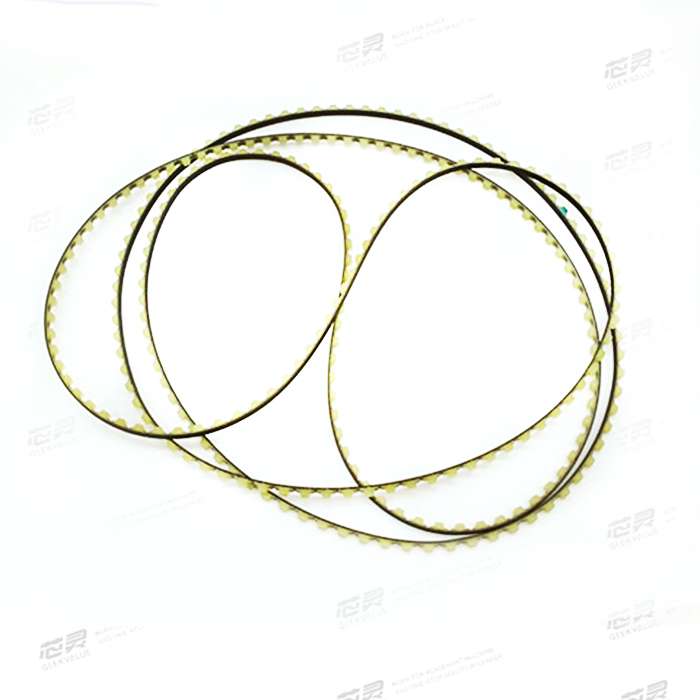

ASM SIPLACE 00364847-01 is a Synchroflex 2.5 T5/1160 toothed belt used in the PCB conveyor transport path. Service documentation identifies 00364847-xx as a conveyor toothed-belt service item, while parts records consistently list the 2.5 T5/1160 specification. It should therefore be treated as a transport belt rather than a generic machine timing belt.
The important maintenance point is not only selecting the correct belt number. Conveyor routing and tension must also be restored correctly during installation. An incorrectly routed, twisted or poorly tensioned belt can cause uneven PCB transfer, intermittent transport faults, abnormal belt wear and repeated conveyor stoppages even when the new belt itself is correct.
ASM SIPLACE 00364847 Belt Specifications
| Part Number | 00364847-01 |
|---|---|
| Part Type | PCB conveyor toothed belt |
| Belt Type | Synchroflex |
| Documented Specification | 2.5 T5/1160 |
| System Context | PCB conveyor / transport path |
| Service Requirement | Correct belt routing and tension adjustment after installation |
| Core Matching Point | Confirm complete P/N, installed conveyor position and existing belt routing |
Service documentation for SIPLACE modular conveyor systems shows that the belt path can vary according to the transport area and drive-unit installation. The belt should not be stretched or kinked during replacement, and the original routing around the drive and deflection pulleys should be noted before removal.
When PCB transfer becomes intermittent or uneven, inspect more than the belt surface alone. Check for damaged teeth, edge wear, contamination and abnormal tracking, then inspect the deflection pulleys and drive path for resistance or looseness. A pulley or alignment problem can quickly damage a replacement belt and reproduce the same transport fault.
This makes 00364847 a preventive-maintenance item as well as a repair part. Replacing a worn conveyor belt before teeth or tracking deteriorate further can keep the repair within the transport path instead of allowing repeated PCB-transfer faults to disrupt production.
If the belt position or routing is unclear, our technical team can review the machine model, existing belt position, pulley layout and installation photos to help confirm the correct 00364847 application before replacement.
00364847-01 is normally available from stock, with confirmed orders typically dispatched within 24–48 hours. For urgent conveyor-repair requirements, send the complete part number, machine model, required quantity and installed transport position for matching confirmation and formal quotation.
