ASM SIPLACE 00319748 is the complete 12-position segment assembly used in the DLM2 / SP12 service environment. Older parts descriptions use the term 12er Segment CPL: 12er denotes the twelve-position configuration, while CPL indicates the complete segment assembly.
00319748 is a complete 12-position segment assembly, so it should be considered when diagnosis confirms that the segment itself requires replacement or exchange. If the fault remains limited to a separately serviceable component elsewhere in the DLM head, a complete-segment replacement may not be necessary.

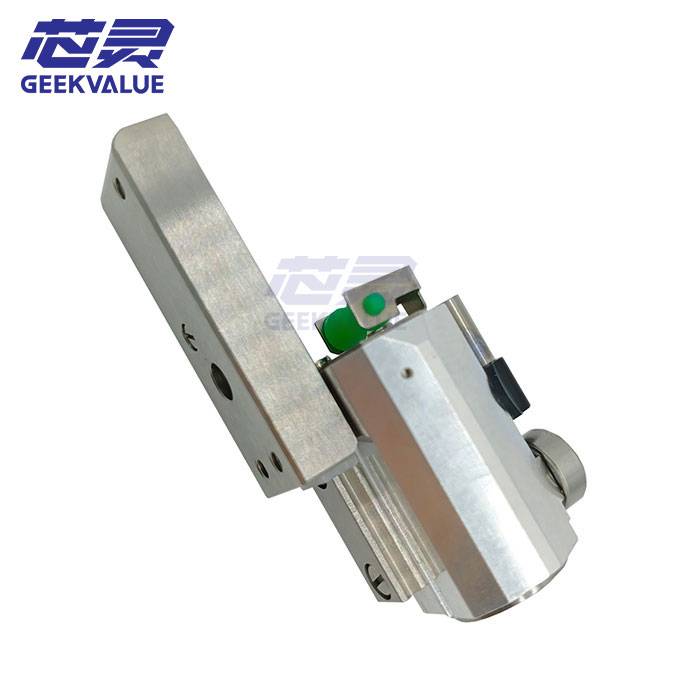

00319748 DLM2 Segment
| Part Number | 00319748 |
| Documented Revisions | -01 / -02 / -03 / S04 |
| Common Description | 12er Segment CPL / SP12 segment |
| Primary Documented Family | DLM2 |
| Assembly Level | Complete 12-position segment |
| S04 Documentation Note | Widely documented as DLM2; some commercial catalogs use DLM3 |
| Lower Repair Level | Sleeves and other separately serviceable segment components |
Complete-segment replacement should only be considered after the fault has been isolated to the 00319748 assembly itself. SIPLACE DLM heads also use separately serviceable sleeves and other lower-level mechanical parts, so some head-related faults may still be repairable without replacing the complete twelve-position segment.
When inspection confirms that the segment assembly itself is the failed service level, replacement or exchange of the complete 00319748 becomes a more appropriate repair route than continuing with isolated component-level work.
The S04 revision also requires careful documentation review. Repair records and multiple market references identify 00319748S04 as a DLM2 12er segment, while some commercial catalogs describe the same P/N as DLM3. This conflict should be treated as inconsistent aftermarket documentation rather than evidence that DLM2 and DLM3 applications are interchangeable.
P/N 00350588 is an example of a separately supplied sleeve with ball fixing within the broader DLM service ecosystem. It demonstrates that lower-level mechanical repair options exist, but it should not be assumed to be a direct subcomponent of 00319748 without confirming the specific DLM head and parts documentation. See the 00350588 sleeve with ball fixing page for that separate repair level.
For a complete-segment requirement, provide the installed 00319748 suffix, placement-head identification, machine model, photos and fault history. Remote troubleshooting and exchange-repair service can be considered before approving a high-value complete-segment replacement.
