ASM CT201409 is supplied as a CPK test chip for ASM placement-machine verification work. Unlike an installed machine spare part, it is test material used as part of an existing CPK procedure, so the most important purchasing reference is the exact CT201409 identification already specified by the factory's test process.
Market descriptions often combine CT201409 with shorthand references such as 1005, 0402 and 0603. Those package labels should not be used as the only purchasing specification. A production component with a similar nominal size is not automatically equivalent to the test reference required by an established CPK procedure.
This matters to quality and process teams because changing the test component can also change the basis of the verification run. If the replacement material does not match the reference used in the existing procedure, the resulting CPK data may no longer be directly comparable with previous verification results. For repeat testing, keeping the component reference consistent is therefore more important than selecting a visually similar chip from a generic package-size description.
ASM CT201409 CPK Chip Specifications
| Product Reference | CT201409 |
|---|---|
| Product Type | CPK test chip / verification component |
| Application | ASM placement-machine CPK verification workflow |
| Common Selection Risk | Selecting by 1005 / 0402 / 0603 package shorthand without confirming the CT201409 test reference |

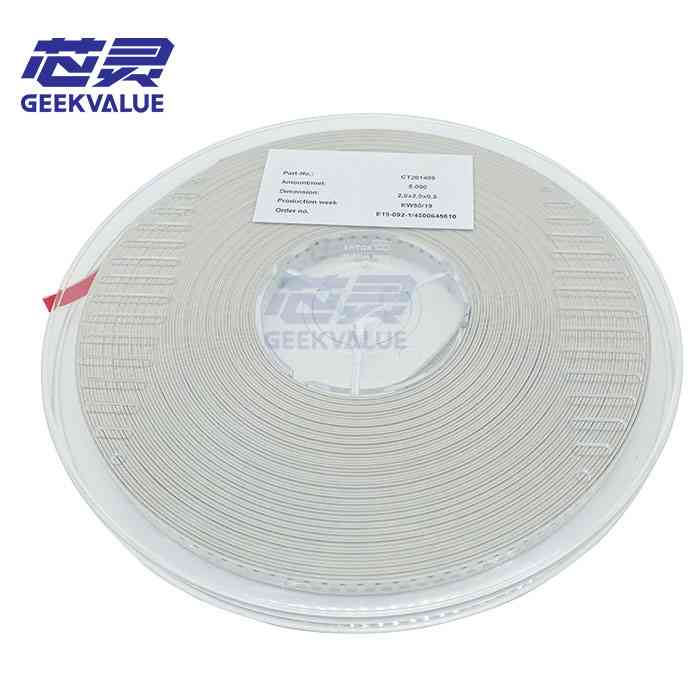

| Supply Form | Tape and reel |
| Market Size References | Commonly listed with 1005 / 0402 / 0603 descriptions; exact test specification should be confirmed from the existing procedure |
| Core Matching Point | Existing reel label, CT201409 reference, verification procedure, required quantity and planned test schedule |
CT201409 is better treated as controlled test material than as a generic SMT component. If your quality or process team is repeating an established CPK verification, send the existing reel label and the reference used in the current procedure so the replacement supply can be checked against the same identification.
For machine-side accuracy-check equipment rather than test material, see the ASM SIPLACE 03068036-01 Accuracy Check Tool ACT.
CT201409 is normally held for both scheduled verification work and time-sensitive test requirements, with confirmed stock orders typically dispatched within 24–48 hours. For repeat or planned CPK checks, provide the reel label, required quantity and test-procedure reference when requesting a quotation; we can also prepare a specification confirmation sheet for the quality and purchasing teams so the approved reference is clearly recorded before supply.
